New camera designed by Stanford researchers could improve robot vision and virtual reality

Two men adjusting a camera body resting on a cart; one man is setting up a detached lens near the camera body.

Photo by L.A. Cicero: Assistant Professor Gordon Wetzstein, left, and postdoctoral research fellow Donald Dansereau with a prototype of the monocentric camera that captured the first single-lens panoramic light fields.

Stanford News - July 21st, 2017 - by Taylor Kubota

A new camera that builds on technology first described by Stanford researchers more than 20 years ago could generate the kind of information-rich images that robots need to navigate the world. This camera, which generates a four dimensional image, can also capture nearly 140 degrees of information.

“We want to consider what would be the right camera for a robot that drives or delivers packages by air. We’re great at making cameras for humans but do robots need to see the way humans do? Probably not,” said Donald Dansereau, a postdoctoral fellow in electrical engineering.

With robotics in mind, Dansereau and Gordon Wetzstein, assistant professor of electrical engineering, along with colleagues from the University of California, San Diego have created the first-ever single-lens, wide field of view, light field camera, which they are presenting at the computer vision conference CVPR 2017 on July 23.

As technology stands now, robots have to move around, gathering different perspectives, if they want to understand certain aspects of their environment, such as movement and material composition of different objects. This camera could allow them to gather much the same information in a single image. The researchers also see this being used in autonomous vehicles and augmented and virtual reality technologies.

“It’s at the core of our field of computational photography,” said Wetzstein. ”It’s a convergence of algorithms and optics that’s facilitating unprecedented imaging systems.”

From a peephole to a window

The difference between looking through a normal camera and the new design is like the difference between looking through a peephole and a window, the scientists said.

“A 2D photo is like a peephole because you can’t move your head around to gain more information about depth, translucency or light scattering,” Dansereau said. “Looking through a window, you can move and, as a result, identify features like shape, transparency and shininess.”

That additional information comes from a type of photography called light field photography, first described in 1996 by Stanford professors Marc Levoy and Pat Hanrahan. Light field photography captures the same image as a conventional 2D camera plus information about the direction and distance of the light hitting the lens, creating what’s known as a 4D image. A well-known feature of light field photography is that it allows users to refocus images after they are taken because the images include information about the light position and direction. Robots might use this to see through rain and other things that could obscure their vision.

Very wide panorama photo of open campus space, showing several students walking near multiple buildings.

Very wide panorama of indoor space, with checkered floor upon which numerous random desktop/knickknack items are scattered.

Alternate version of previous image, in which all objects are outlined in shades of red, purple, and blue to show depth.

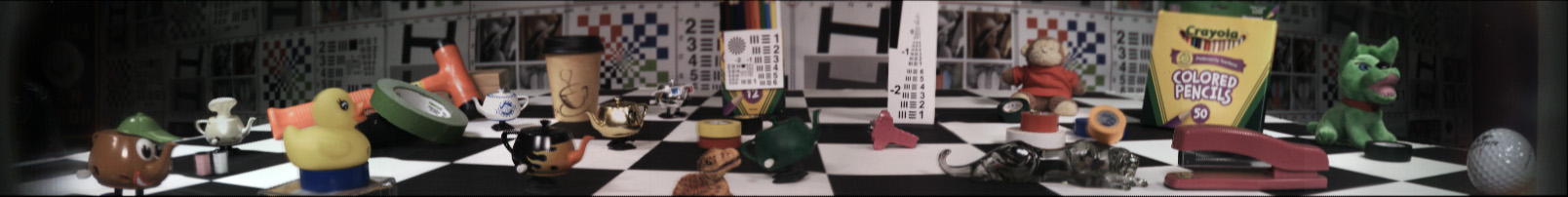

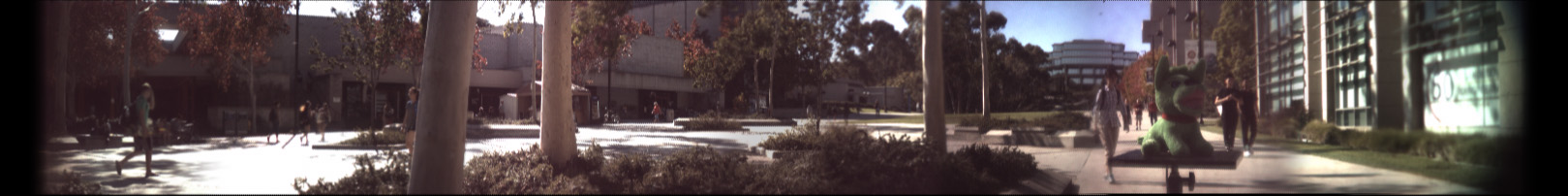

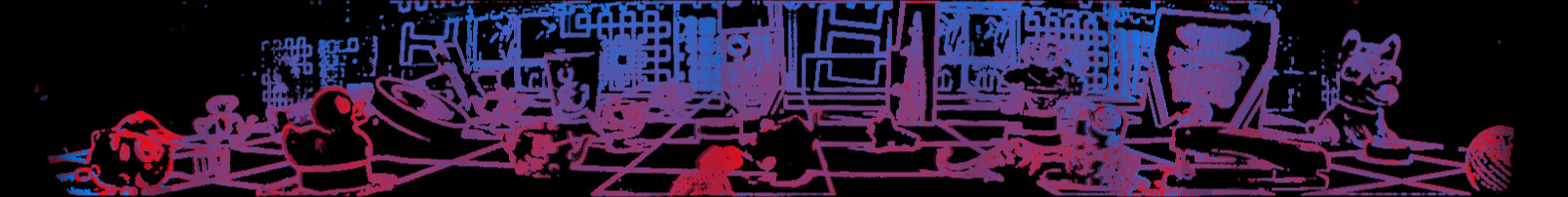

Image courtesy Stanford Computational Imaging Lab and Photonic Systems Integration Laboratory at UC San Diego: Two 138° light field panoramas and a depth estimate of the second panorama. (Click images to enlarge.)

The extremely wide field of view, which encompasses nearly a third of the circle around the camera, comes from a specially designed spherical lens. However, this lens also produced a significant hurdle: how to translate a spherical image onto a flat sensor. Previous approaches to solving this problem had been heavy and error prone, but combining the optics and fabrication expertise of UCSD and the signal processing and algorithmic expertise of Wetzstein’s lab resulted in a digital solution to this problem that not only leads to the creation of these extra-wide images but enhances them.

Robotics up close

This camera system’s wide field of view, detailed depth information and potential compact size are all desirable features for imaging systems incorporated in wearables, robotics, autonomous vehicles and augmented and virtual reality.

Man holding up small spherical lens, which looks like a glass ball, between thumb and forefinger.

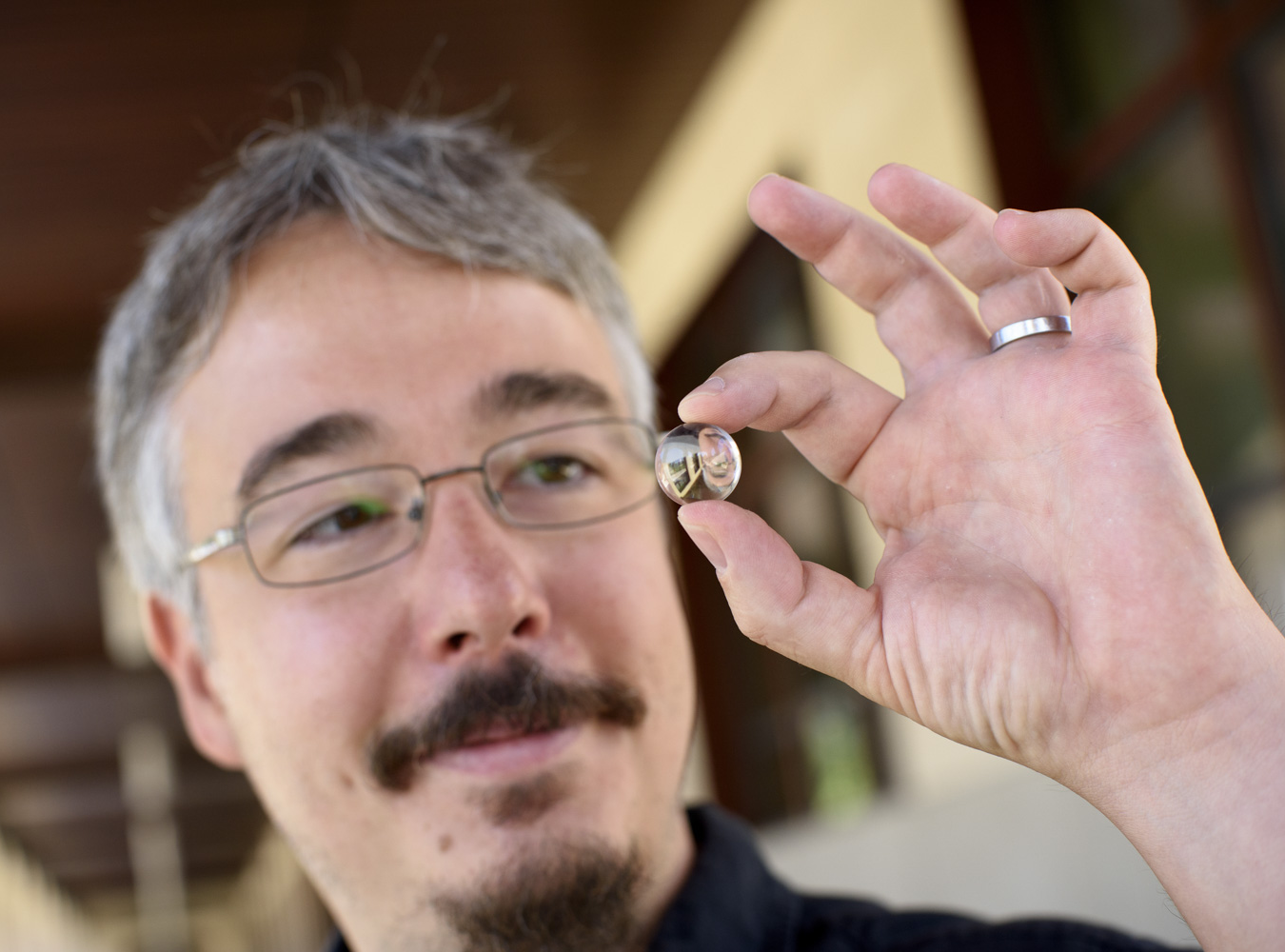

Photo by L.A. Cicero: Postdoctoral research fellow Donald Dan-
sereau holds a spherical lens like the one which is at the heart
of the panoramic light field camera, capturing rich light field
information over a wide field of view.

“It could enable various types of artificially intelligent technology to understand how far away objects are, whether they’re moving and what they’ve made of,” said Wetzstein. “This system could be helpful in any situation where you have limited space and you want the computer to understand the entire world around it.”

Although it can also work like a conventional camera at far distances, this camera is designed to improve close-up images. Examples where it would be particularly useful include robots that have to navigate through small areas, landing drones and self-driving cars. As part of an augmented or virtual reality system, its depth information could result in more seamless renderings of real scenes and support better integration between those scenes and virtual components.

The camera is currently a proof-of-concept and the team is planning to create a compact prototype next. That version would hopefully be small enough and light enough to test on a robot. A camera that humans could wear could be soon to follow.

“Many research groups are looking at what we can do with light fields but no one has great cameras. We have off-the-shelf cameras that are designed for consumer photography,” said Dansereau. “This is the first example I know of a light field camera built specifically for robotics and augmented reality. I’m stoked to put it into peoples’ hands and to see what they can do with it.”

Additional information about this camera system is available here. Additional co-authors of the paper are Glenn Schuster and Joseph Ford of UCSD. Wetzstein is also a professor, by courtesy of computer science, a member of Stanford Bio-X and a member of the Stanford Neurosciences Institute.

This research was funded by the NSF/Intel Partnership on Visual and Experiential Computing and DARPA.

The Wetzstein lab is also presenting work on reconstructing transient images from single-photon sensors at the picosecond scale – one trillion frames per second – at CVPR 2017. That paper is available here with additional information here.

Originally published at Stanford news
